Cement Type Resistor:

5、External dimensions
5.6 5W SQE Type
Watt Dimensions(mm)
L±1.0 H±1.0 W±1.0 d±0.05 P±1.0
5W 16 18 8.0 0.56 10
5.5 5W SQE*2 Type
Watt Dimensions(mm)
L±1.0 H±1.0 W±1.0 d±0.05 P±1.0
5W 16 18 8.0 0.56 5

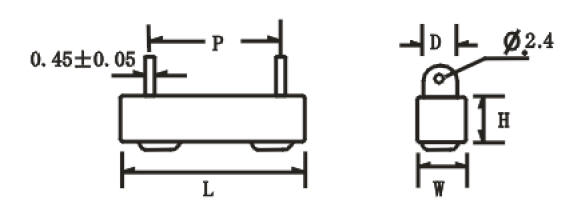

5.4 SQH Type
Unit:mm
Watt Dimensions(mm) Resistance Range(Ω)
W±2.0 H±1.0 L±2.0 P±1.0 D±1.0 Wire Wound Metal Oxide Film
10W 10 10 48 32 6 0.5Ω-150Ω 160Ω-100KΩ
15W 10 10 48 32 6 1Ω-150Ω 160Ω-100KΩ
20W 13 13 63 48 6 1Ω-180Ω 190Ω-100KΩ
30W 19 19 75 56 6 1Ω-200Ω 210Ω-100KΩ

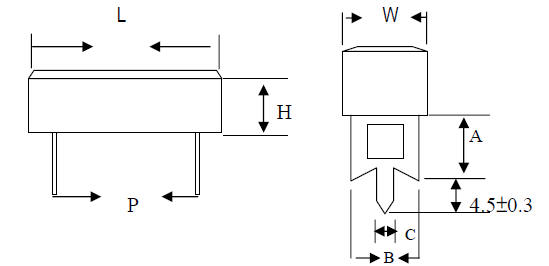

5.3 SQZ Type
Watt Dimensions(mm) Resistance Range(Ω)
L±1 P±2.0 W±1.0 H±1.0 A±2.0 B±0.5 C±0.3 Wire Wound Metal Oxide Film
5W 27 15 10 10 10 7 1.5 0.1Ω-15Ω 16Ω-100KΩ
7W 35 22 10 10 10 7 1.5 0.5Ω-33Ω 36Ω-100KΩ
10W 48 32 10 10 10 7 1.5 0.5Ω-150Ω 160Ω-100KΩ
15W 48 32 10 10 15 10 3 1Ω-150Ω 160Ω-100KΩ
20W 63 48 13 13 15 10 3 1Ω-180Ω 190Ω-100KΩ
30W 75 56 19 19 15 10 3 1Ω-200Ω 210Ω-100KΩ
Unit:mm
Watt W±1.0 D±1.0 H±2.0 Φd±0.05 P±1.0 Resistance Range(Ω)
Wire Wound Metal Oxide Film
2W 11 7.0 21 0.75 5 0.1Ω~22Ω 24Ω~100KΩ
3W 12 8.0 24 0.75 5 0.1Ω~47Ω 50Ω~100KΩ
5W 13 9.0 25 0.75 5 0.1Ω~47Ω 50Ω~100KΩ
7W 13 9.0 39 0.75 5 0.5Ω~33Ω 36Ω~100KΩ
10W 13 9.0 51 0.75 5 0.5Ω~150Ω 160Ω~100KΩ
10WS 16 12.0 36 0.75 5 0.5Ω~150Ω 160Ω~100KΩ

5.2 SQM Type

Unit:mm
5.1 SQP Type
Unit:mm
Watt L±1.0 W±1.0 H±1.0 Φd±0.05 Resistance Range(Ω)
Wire Wound Metal Oxide Film
1W 14.0 6.5 6.5 0.52 0.1Ω~22Ω 24Ω~56KΩ
2W 18.0 7.0 7.0 0.72 0.1Ω~22Ω 24Ω~56KΩ
3W 22.0 8.0 8.0 0.72 0.1Ω~47Ω 50Ω~100KΩ
5W 22.0 9.5 9.5 0.72 0.1Ω~47Ω 50Ω~100KΩ
7W 35.0 9.5 9.5 0.72 0.5Ω~33Ω 36Ω~100KΩ
10W 48.0 9.5 9.5 0.72 0.5Ω~150Ω 160Ω~100KΩ
15W 48.0 12.5 12.5 0.72 1Ω~150Ω 160Ω~100KΩ
20W 60.0 14.0 13.0 0.72 1Ω~180Ω 190Ω~100KΩ
25W 60.0 14.0 13.0 0.72 1Ω~180Ω 190Ω~100KΩ
30W 75.0 19.0 19.0 0.72 1Ω~200Ω 210Ω~100KΩ
3、Characteristics
Item Performance Test methodsConform toJIS C 5202)

Temperature Coefficient

Metal Oxide Film:±350PPM/
Resistor Wire:±260PPM/

Comply with 5.2



R0: Resistance value at room temp.( T0).
R1:Resistance value at room temp.plus 100 (T1)

Short time overload

Within ±(2%+0.05Ω).
No evidence of mechanical damage.

Comply with 5.5

Rated voltage×2.5 times,5s
But not to exceed maximum overload voltage. (See table-1)

Insulation Resistance

103MΩ or more.

Comply with 5.6

V-block method, Resistor shall be tested at DC 500V for 60 seconds.

Dielectric Withstanding Voltage

No evidence of flashover mechanical damage, arcing  or insulation breakdown.

Comply with 5.7
Constant pressure, V-block method, Resistor shall be tested at AC potential respectively for 60 seconds.(See table-1)

Pulse overload

Within ±(2%+0.05Ω)

Comply with 5.8
Rated voltage X 4 times, 10000 cyc.(1s ON, 25s OFF)
But not to exceed maximum pulse voltage.(See table-1)

Resistance to soldering heat

Within ±(1%+0.05Ω)
No evidence of mechanical damage.

Comply with 6.4
350±10,3±1.0s, After test leave for 0.5h.
Solderability

Covered with new solder by 95% at least.

Comply with 6.5
Test temperature of solder: 230±5
Dipping time in solder:3±1.0 s
Temperature cycle

Within ±(2%+0.05Ω)
No evidence of mechanical damage.

Comply with 7.4
Low side-55/30min, Room temp.10 to 15min
High side80/30min, Room temp.10 to 15min
5 cycles
Load life in humidity

Within ±(5%+0.05Ω)

Comply with 7.9
40±2, 90 to 95%RH, 1000h
Rated voltage (90 min ON, 30 min OFF)
Load life

Within ±(5%+0.05Ω)

Comply with 7.10
70±3, 1000h
Rated voltage (90 min ON, 30 min OFF)
2、Construction
2.2、Structure diagram
No Item Material
1 Ceramic core

High alumina ceramic is used.

2 Resistor element

The resistor element shall consist of metal oxide film or Resistance wire  (Exemple:CN49W Φ1.0mm) .

3 Terminal Tinned iron cap.
4 Connection The lead wire, which is plated with solder, shall be mounted to the caps by welding process.
5 Lead wire Soldered or tinned annealed wire.
6 Silicon cement Silicon resin is used. Accord with UL-94V-0 Nonflammable specification.
7 Ceramic case High thermal conductivity

     The construction of resistor Cement Type Resistors shall be as follows:



2.1、External dimensions
            The dimensions shall be satisfied with5、External dimensions
1、General
1.4、Rated voltage

The rated voltage shall be the D.C. or A.C.(R.M.S. at power frequency) voltage which corresponds the rated power and the value of which is calculated from the formula below

     E=(PxR)  Where E:Rated voltage(V)   P:Rated power(W)   R: Nominal resistance(Ω)

1.3、Rated power

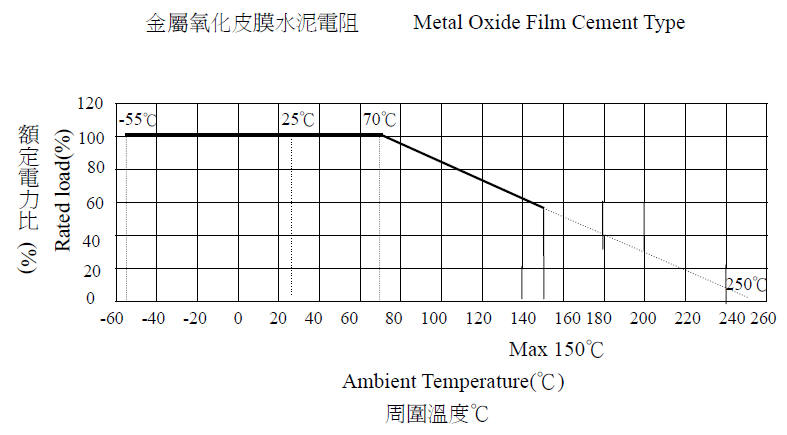

Rated power is maximum power which can be continuously loaded at specified ambient temperature 70,as Table-1;however when the ambient temperature exceeds 70,rated power should be determined from the derating curve of Fig.1.

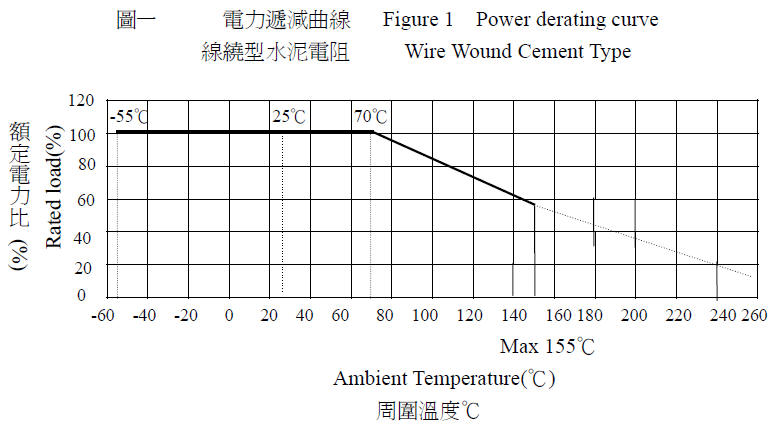

Figure 1  Power derating curve
Table-1
Rated power

Maximum working voltage

Maximum overload voltage

Dielectric withstanding voltage

Max Intermittence Overload Voltage

1W 350V 700V 1000V 1500V
2W 350V 700V 1000V 1500V
3W 500V 1000V 1000V 1500V
5W 750V 1500V 1000V 1500V
7W 1000V 1500V 1000V 1500V
10W 1000V 1500V 1000V .1500V
15W 1000V 1500V 1000V 1500V
20W 1000V 1500V 1000V 1500V
30W 1000V 1500V 1000V 1500V
40W 1000V 1500V 1000V 1500V
50W 1000V 1500V 1000V 1500V

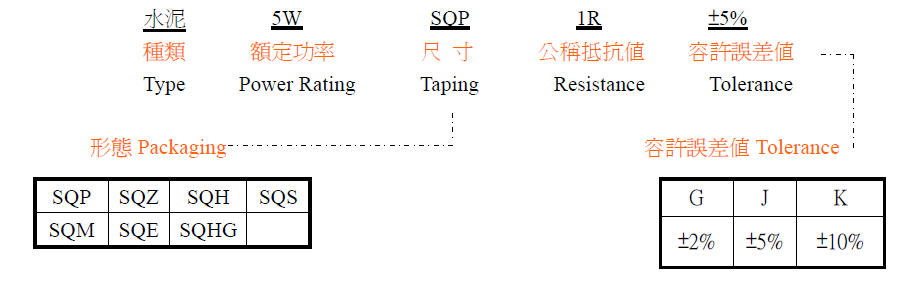

1.2、Type designation (example)

The type designation shall be in the following form and as specified.

SQP

Type

SQP
SQM
SQZ
SQHG
SQS
SQH
SQE

5W

Rated power
1W
2W
3W
5W
7W
10W
15W
20W
30W
40W
50W

10K

Nominal resistance value

E-12 Series
E-24 Series



±5%

Resistance tolerance

K

±10%

J

±5%

G

±2%



1.1、Scope

This specification is available for Cement Type Resistor manufactured by FONG YA ELECTRONIC(DONG GUAN)CO.,LTDit accords with RoHS test of Environment related substance requirement.













4、Indication

5W 10Ω J

(1)Rated Power、(2)Resistance、(3)Tolerance. Sample

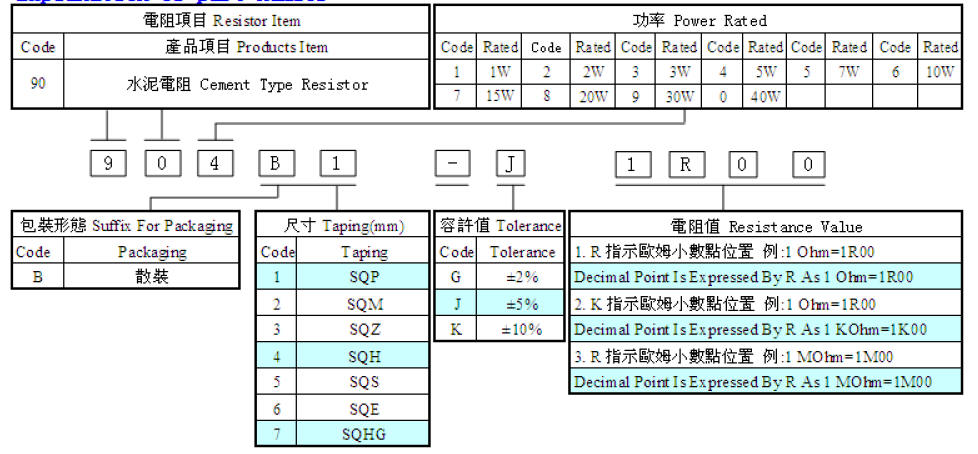

Explanation of part number

Product ldentification
